| 品牌：威乐 | 型号：PH | 材质：铸铁 |
| 性能：自动 | 用途：增压泵 | 扬程：10m |
| 驱动方式：电动 | 输送介质：清水泵 | 泵轴位置：卧式 |
| 叶轮结构：半开式叶轮 | 叶轮吸入方式：单吸式 | 流量：8m3/h |
| 叶轮数目：1 | 重量：7kg | 电压：380V |
| 功率：1kw | 是否跨境货源：否 |
威乐WILO水泵热水循环泵

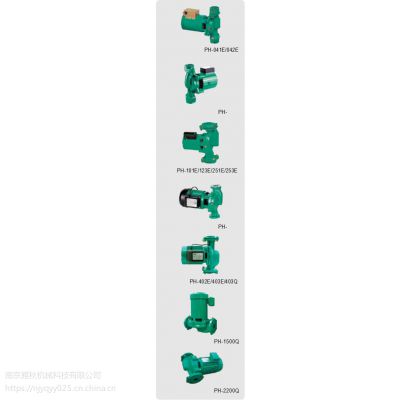

PH-041E/042E/045E/101E/123E/251E/253E/254E/402E/403E/403Q/1500Q/2200Q
Feature/特征:
In-line, easy installation/管道式安装，连接方便Light and excellent design/重量轻，***设计Long life/使用寿命长
Application/应用:
Hot water circulation and heating system/热水循环和采暖系统Air-conditioning systems/空调系统
Industrial circulation systems/工业循环系统
General pressure boosting in household/家庭用水增压
PH- 041E | PH- 042E | PH- 045E | PH- 101E | PH- 123E | PH- 251E | PH- 253E | PH- 254E | PH- 402E | PH- 403E | PH- 403Q | PH- 1500Q | PH- 2200Q | ||
Electrical connection | 电气连接 | |||||||||||||
Power source | 电源参数 | 1~220V/50Hz, 3~380V/50Hz | ||||||||||||
Input power P1 (W) | 输入功率 | 90 | 90 | 90 | 200 | 265 | 410 | 410 | 330 | 900 | 1000 | 1000 | 1800 | 2900 |
Output power P2 (W) | 输出功率 | 40 | 40 | 40 | 100 | 125 | 250 | 250 | 250 | 400 | 400 | 400 | 1500 | 2200 |
Applications | 应用场合 | |||||||||||||
Approved fluids | 输送介质 | Clean water 清水 | ||||||||||||
Fluid temp (℃) | 介质温度 | 100 | 80 | |||||||||||
Performance data | 性能参数 | |||||||||||||
Max head (m) | 扬程 | 3.5 | 3.5 | 3.5 | 5 | 5 | 7.5 | 7.5 | 15 | 16 | 20 | 19 | 25 | 30 |
Max flow (l/min) | 流量 | 60 | 60 | 60 | 130 | 190 | 230 | 230 | 100 | 310 | 300 | 300 | 420 | 500 |
Rated flow (l/min) | 额定流量 | 28 | 28 | 28 | 85 | 135 | 190 | 190 | 50 | 180 | 130 | 130 | 200 | 250 |
Rated head (m) | 额定扬程 | 2.5 | 2.5 | 2.5 | 3 | 3 | 4 | 4 | 10 | 10 | 16 | 16 | 20 | 25 |
Inlet size (mm) | 进口尺寸 | 25 | 32 | 25 | 40 | 50 | 65 | 50 | 40 | 80 | 50 | 50 | 40 | 40 |
Outlet size (mm) | 出口尺寸 | 25 | 32 | 25 | 40 | 50 | 65 | 50 | 40 | 80 | 50 | 50 | 40 | 40 |
Max pressure (bar) | 承压 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 | 3.0 | 2.0 | 2.0 | 2.0 | 2.0 | 4.0 |
Protection class | 防护等级 | IP22 | IP22 | IP22 | IP22 | IP22 | IP22 | IP22 | IP44 | IP24 | IP24 | IP24 | IP44 | IP44 |
Weight (kg) | 重量 | 4.2 | 4.2 | 4 | 8.5 | 11 | 17 | 17 | 10 | 25 | 25 | 24 | 33 | 38 |
Materials | 材质 | |||||||||||||
Casing | 泵体 | Cast Iron 铸铁 | ||||||||||||
Impeller | 叶轮 | Plastic 工程塑料 | Brass 黄铜 | Cast Iron 铸铁 | ||||||||||
Shaft | 轴 | Stainless Steel 不锈钢 | ||||||||||||
Mechanical seal | 机械密封 | Carbon & Ceramic 石墨&陶瓷 | ||||||||||||
